GEPRC Stable Pro F7 DUAL BL 35A Flytower /Stable V2 F4 Flight Controller+ 35A /30A ESC+5.8G 500mW VTX for FPV Racing Drone-in Parts & Accessories from Toys & Hobbies

Scroll to product details, material & care and sizing

$ 89.90

Add to cart Add to wishlist

Term:
30a blheli esc, brushless drone motor, helicopter walkera, Wholesale geprc gep, Wholesale drone kit with remote, Wholesale control fpv, Wholesale carbon drone frame, Wholesale quadcopt, Wholesale 30a esc, Wholesale fpv, Wholesale for honda vtx, Wholesale fpv vtx,

GEPRC Stable Pro F7 DUAL BL 35A Flytower /Stable V2 F4 Flight Controller+ 35A /30A ESC+5.8G 500mW VTX for FPV Racing Drone Details & Specification :

Item Specifications
Use Vehicles & Remote Control Toys
Material Composite Material
Upgrade Parts/Accessories Frame
Remote Control Peripherals/Devices Receivers
Four-wheel Drive Attributes Assemblage
Tool Supplies Assembly Category
For Vehicle Type Helicopters
Model Number STABLE PRO F7 & V2 FPV
Brand Name GEPRC
RC Parts & Accs Flight Controller

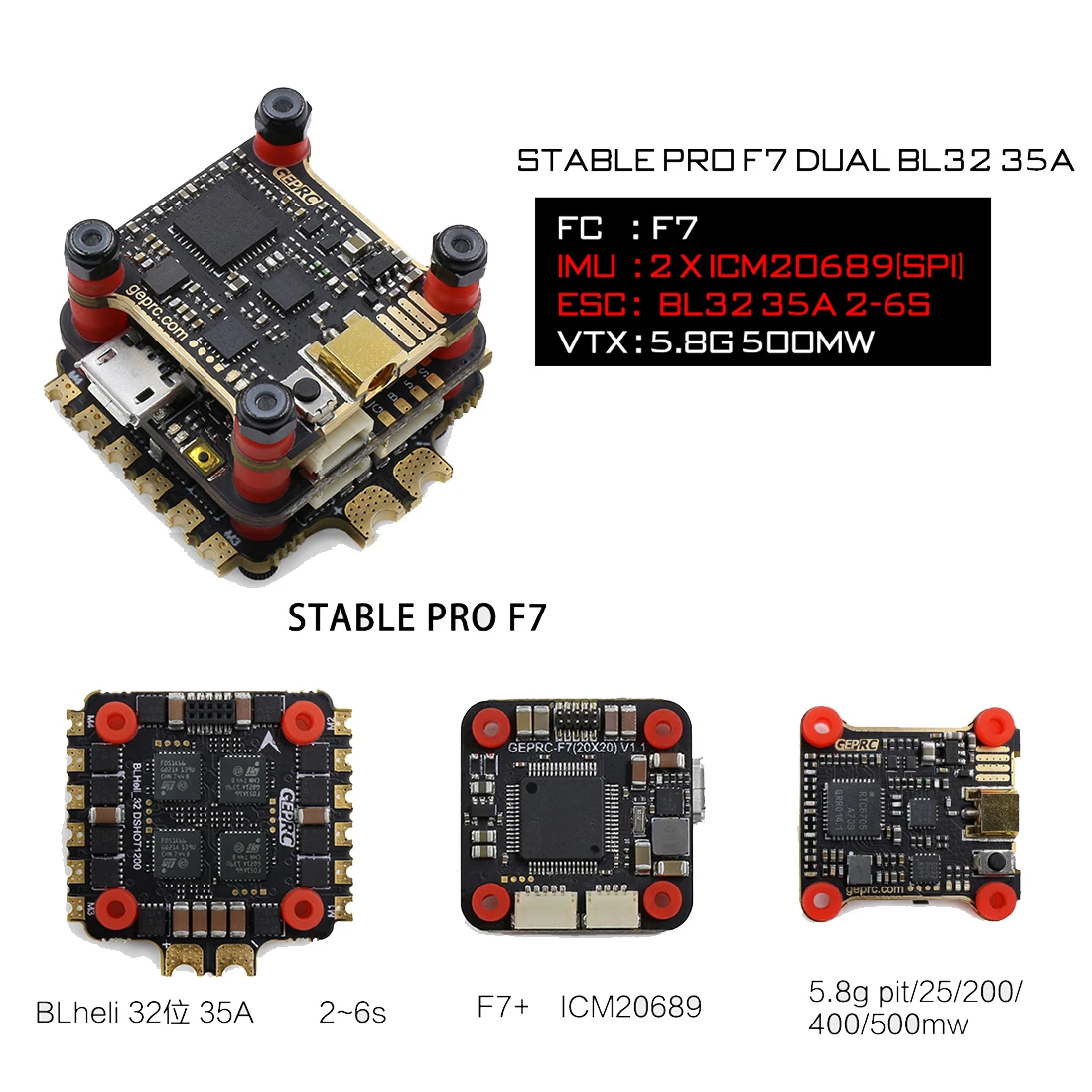

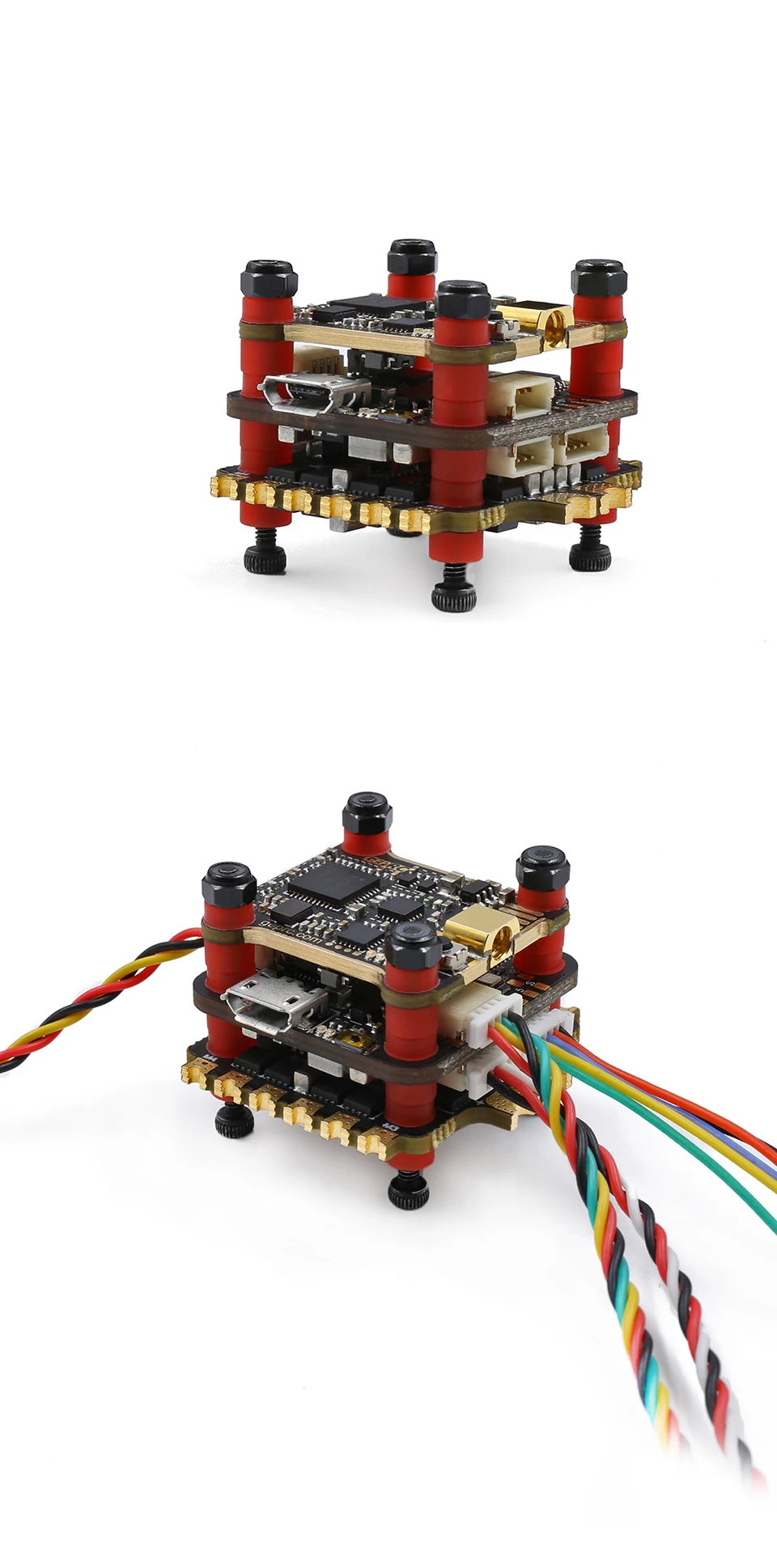

GEPRC Stable Pro F7 DUAL BL 35A Flytower /Stable V2 F4 Flight Controller+ 35A /30A ESC+5.8G 500mW VTX for FPV Racing Drone Quadcopter

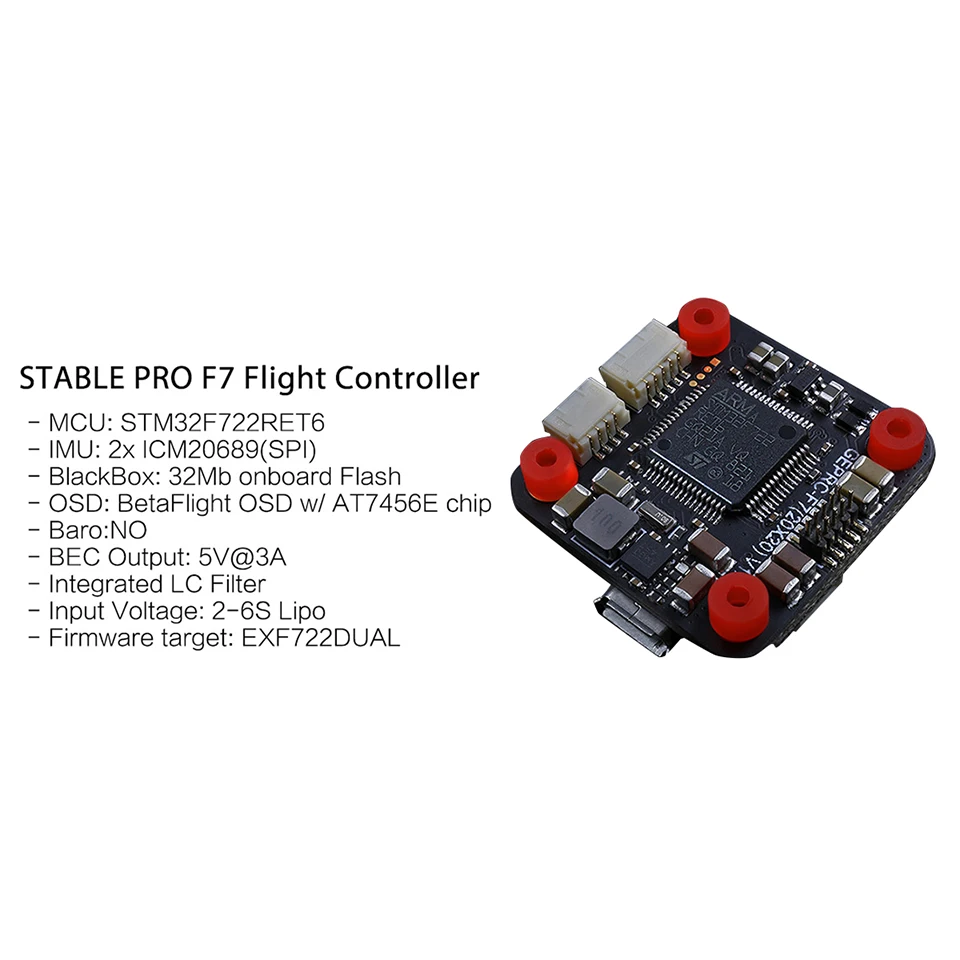

STABLE PRO F7 Flight Controller Specs:

-Model:STABLE PRO F7 35A

-MCU: STM32F722RET6

-IMU: 2x ICM20689(SPI)

-BlackBox: 32Mb onboard Flash

-OSD: BetaFlight OSD w/ AT7456E chip

-Baro:NO

-BEC Output: [email protected]

-Integrated LC Filter

-Input Voltage: 2-6S Lipo

-Firmware target: EXF722DUAL

-Size: 26x26mm board, 20mm mounting holes (M2)



35A ESC BL32 2-6S 4in1 Specs:

-MCU:STM32F051

-Input:2-6s lipo

-Constant:35Amps

-Burst:45Amps

-Dimensions:31*31mm(including the power pads)

-Mounting Holes:20*20mm,M2

-Supports Dshot1200,Proshot,Oneshot,Multishot

-Current meter: Yes

-Target: GEPRC-BL32-4IN1

5.8g 500mW VTX Specs:

-Input voltage: 5V

-Channel: 48

-Power transmission: 0mW(Pit mode) / 25mW / 100mW / 200mW / -400mW/ 500mW

-Size: 24 * 26 mm

-Mounting Holes Dimension: 20mm x 20mm

-Connector type: MMCX Connector

-BEC Output:5V/1A for Camera of FC

-Weight: 2.3g

-Traditional button

-IRC Tramp protocol


Features:

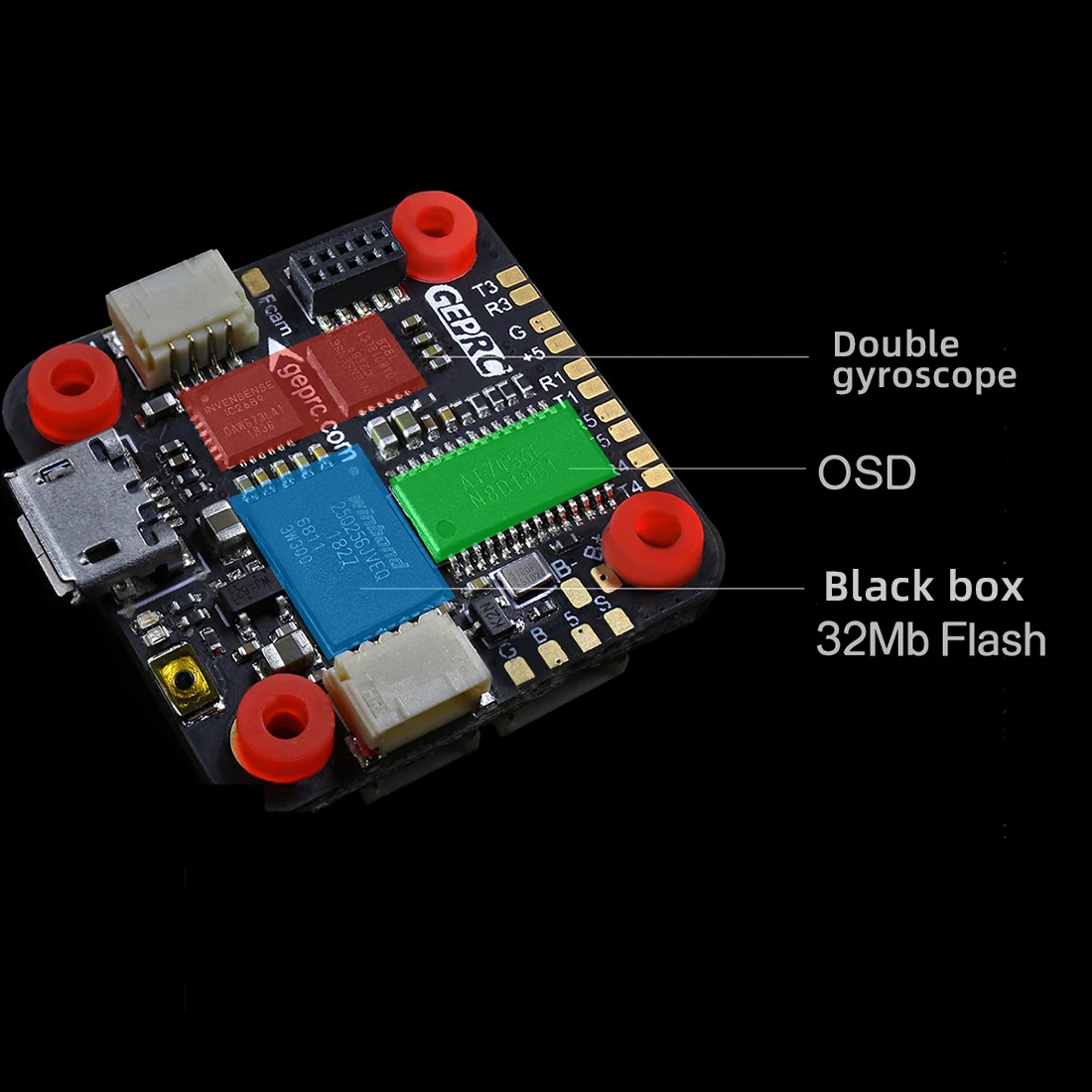

-F7 Support both dual ICM20689 gyroscopes to work simultaneously, -Exquisite and perfect flight experience

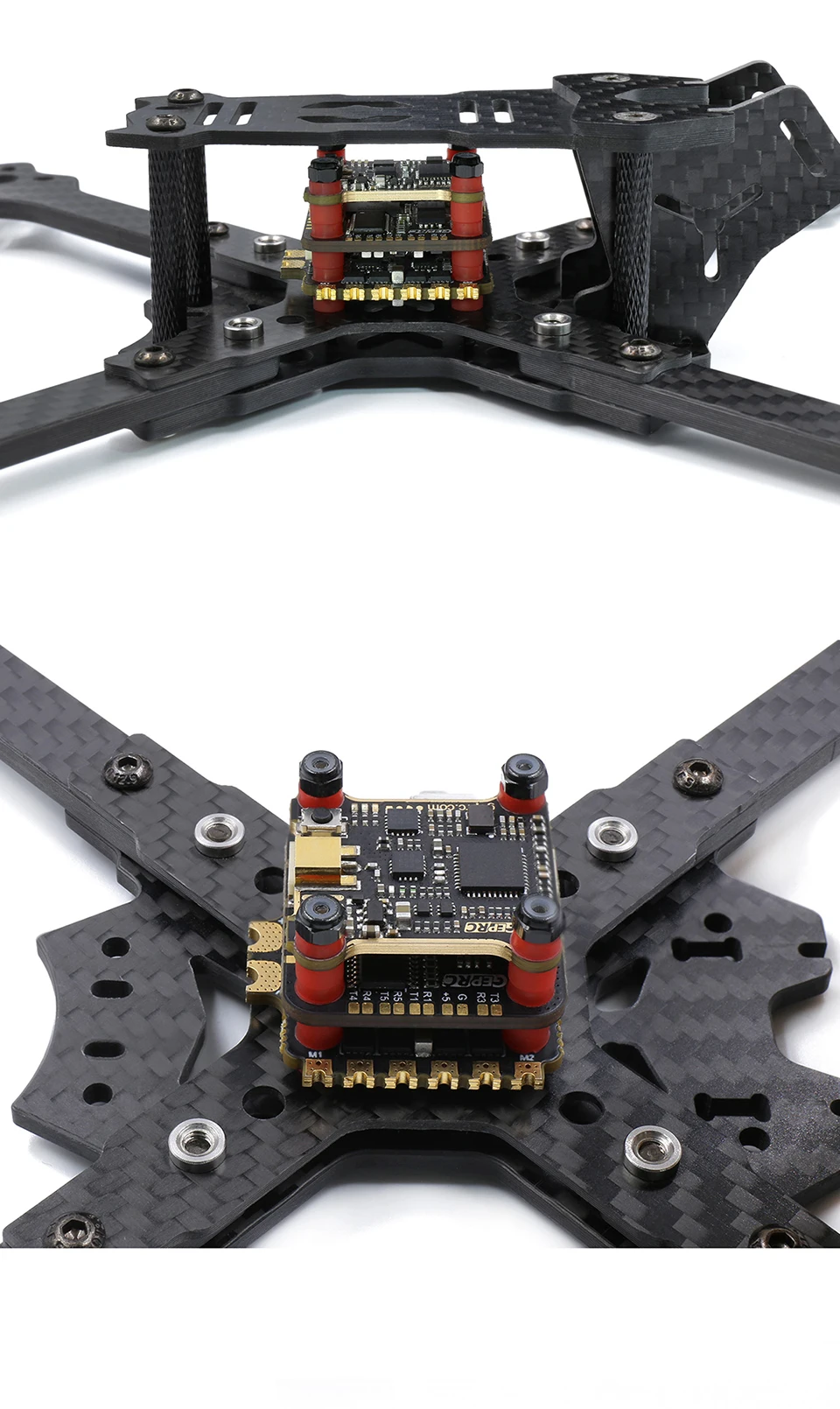

-Innovative soft damping design, suitable for most frame, ensures flight control and gyroscope without noise

-Simple installation method, compact space

-STM32 F405 MCU or STM32F722RET6 MCU

-Newly upgraded BLheli_32 ESC, high-speed operation, 35A stable working voltage, maximum 45A (3 seconds)

-Support 2-6s battery and current meter

-Support blackbox and use 32M on-board flash storage

-8g VTX Support IRC protocol, PIT/ 25/100/200/500mw adjustable, 48 frequency

-Mounting Holes: 20x20mm(M2)

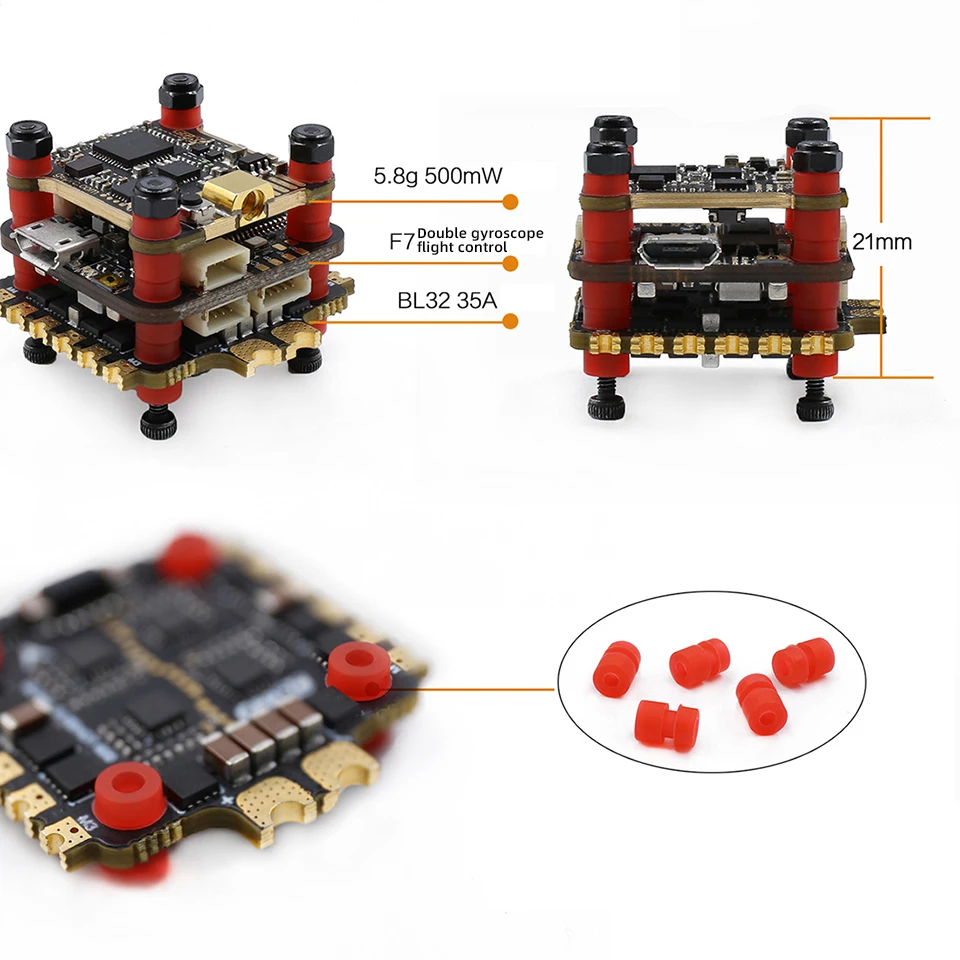

-Size: 26x26x21mm

-Weight 16.5g (Including Wire and screws)


Include:

– 1 x Flight Controller

– 1 x ESC

– 1 x 5.8g 500mW VTX

– 1 x Antenna

– 1 x Capacitance

– 5 x cable set

– 4 x M2*28mm screw

– 16 x Soft silicone
